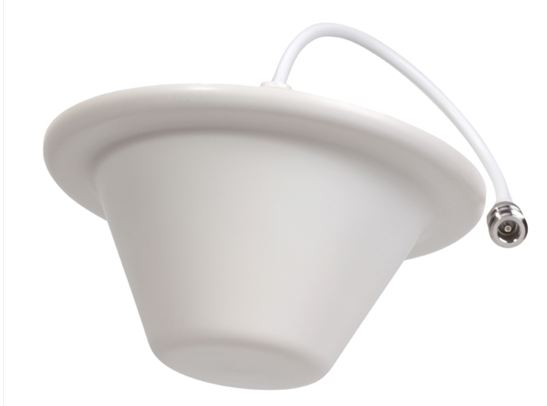

OMNI SISO Antenna, 698~960/1710~2700MHz 2/5 dBi, -150dBc
Electrical Specification |
|
Frequency range (MHz) |
698-800, 800-960, 1710-2700 |
Horizontal-3dB beam width |
360° |
Vertical-3dB beam width |
80°, 80°, 60° |
Gain (dBi) |
2, 2.5, 5 |
Intermodulation (dBc) |
≤-150 @2x43dBm |
Max power (W) |
50 |
Nominal impedance (Ω) |
50 |
Mechanical Specifications |
|
Connector |
N-Female with Pig Tail |
Dimension (mm) |
Φ185×85 |
Weight (kg) |
0.21 |
Work temperature (°C) |
-40 to +70 |
Material |
|
Radome |
ABS |
Radiating Element |
Brass |
Colour |
White |
Reflector |
Aluminium |

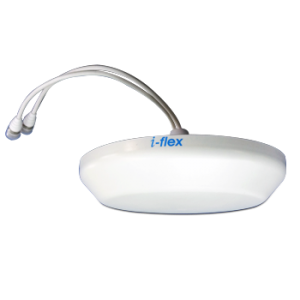

OMNI MIMO Antenna, 698-960/1710-2700MHz 1.5/4 dBi, -150dBc
Electrical Specifications |
||||
Frequency (MHz) |
698-800, 800-960, 1710-2700 |
1710-2700 |
||
Gain (dBi) |
1.5, 1.5, 4 |
4 |
||
Half-power beam width (°) |
Hor: 360 Ver: 85/55 |
Hor: 360 |
|
Ver: 55/45 |
Isolation between ports (dB) |
≥22/25 |
|||
Intermodulation (dBc) |
≤-150 @2x43dBm |
|||
Impedance (Ω) |
50 |
|||
Maximum input power (W) |
50 |
|||
Mechanical Specifications |
||||
Connector |
2×N-Female with Pig Tail |
|||
Connector position |
Bottom |
|||
Size (mm) |
ø200×130 |
|||
Antenna weight (kg) |
0.7 |
|||
Radome material |
ABS |
|||
Radome colour |
White |
|||
Operating temperature (°C) |
-55 ~ +85 |
|||
