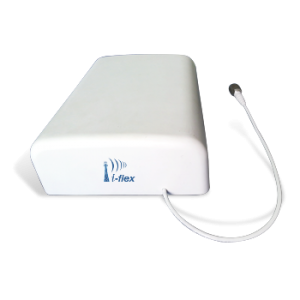

Directional SISO Antenna, 698-960/1710-2700MHz, 5/8 dBi, -150dBc

Electrical Specifications

Frequency range (MHz)

698-800, 800-960, 1710-2700

Horizontal beamwidth

90±15, 90±15, 75±15

Vertical beamwidth

65, 65, 55

Gain (dBi)

5, 5, 8

Intermodulation (dBc)

≤-150 @2x43dBm

F/B ratio

≥20dB

Polarization

Vertical

Max power (W)

50

Nominal impedance (Ω)

50

Mechanical Specifications

Connector

N-Female

Dimension (mm)

207*177*45

Weight (kg)

0.73

Work temperature (°C)

-40 to +70

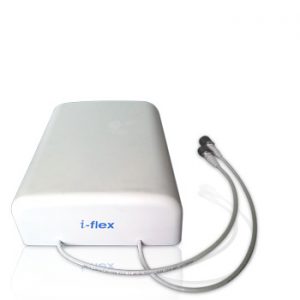

Directional MIMO Antenna, 698-960/1710-2700MHz, 6/7 dBi, -150 dBc

Electrical Specifications

Frequency (MHz)

698-800, 800-960, 1710-2700

1710-2700

Gain (dBi)

6, 6.5, 7

7

Half-power beam width Horizontal

95±15

75±15

Half-power beam width Vertical

85

65

Front-to-back ratio (dB)

≥10

≥15

Isolation (dB)

≥25

Intermodulation (dBc)

[email protected]

Impedence (Ω)

50

Maximum input power (W)

50

Lightning protection

DC Ground

Mechanical Specifications

Connector

2×N-Female

Connector position

Bottom

Size (mm)

260*170*56

Antenna weight (kg)

0.7

Rated wind velocity (m/s)

36.9

Reflector material

Aluminium/copper

Radome material

ABS

Radome colour

White

Operating temperature (°C)

-40 ~ +70
