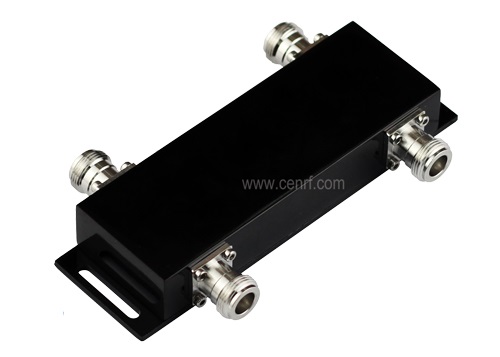

Hybrid Coupler 2in 2out 698-2700MHz -160dBc N-Female IP65

Specifications

Frequency Range

698 - 2700MHz

Insertion Loss

≤3.4dB

Isolation

≥27dB

Return Loss

≥20dB, (VSWR<1.25)

Impedance

50Ω

PIM (IMD3)

≤-160dBc @+43dBm×2

Connectors

N-Female

Power Handling

200W / Input port, (Total power 500W)

Temperature

-25 to +70℃

Environmental Humidity

0 to 95%

Environmental rating

IP65, Outdoor or Indoor

Material

Cavity aluminum silver-plated; Connector: Copper

Weight

2.0Kg

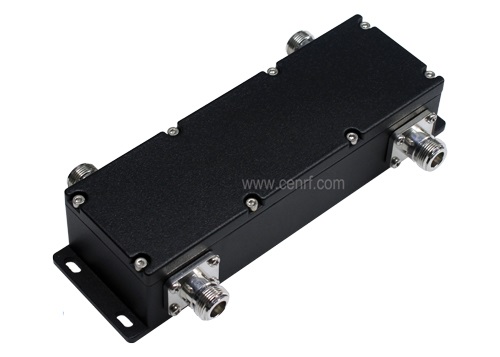

Hybrid Coupler 2in 2out 698-2700MHz -155dBc N-Female IP65

Specifications

Frequency Range

698 - 2700MHz

Insertion Loss

≤3.4dB

Isolation

≥27dB

Return Loss

≥20dB, (VSWR<1.25)

Impedance

50Ω

PIM (IMD3)

≤-155dBc @+43dBm×2

Connectors

N-Female

Power Handling

200W / Input port, (Total power 400W)

Temperature

-25 to +70℃

Environmental Humidity

0 to 95%

Environmental rating

IP65, Outdoor or Indoor

Material

Cavity aluminum silver-plated; Connector: Copper

Weight

1.5Kg

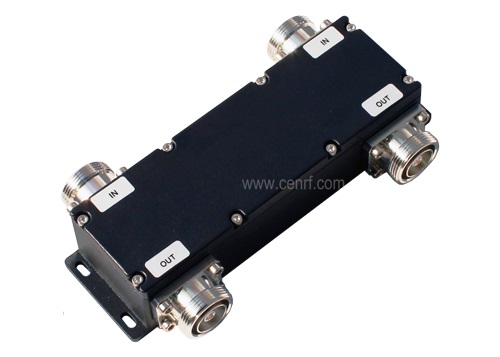

Hybrid Coupler 2in 2out 698-2700MHz -150dBc N-Female IP65

Specifications

Frequency Range

698 - 2700MHz

Insertion Loss

≤3.4dB

Isolation

≥25dB

Return Loss

≥20dB, (VSWR<1.25)

Impedance

50Ω

PIM (IMD3)

≤-150dBc @+43dBm×2

Connectors

N-Female

Power Handling

150W / Input port, (Total power 300W)

Temperature

-25 to +70℃

Environmental Humidity

0 to 95%

Environmental rating

IP65, Outdoor or Indoor

Material

Cavity aluminum silver-plated; Connector: Copper

Weight

0.6Kg

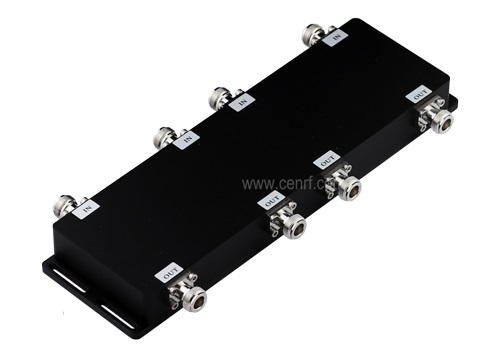

Hybrid Coupler 4in 4out 698-2700MHz -150dBc N-Female IP65

Specifications

Frequency Range

698 - 2700MHz

Insertion Loss

<7.1dB (Including Distribution Loss and Fluctuation)

VSWR

<1.3

Isolation

>20dB

Power Handling

200W / input port; (Total Power 500W)

PIM (IM3)

<[email protected]×+43dBm

Connector

N-Female, 50Ω

Operating Temperature

-20 to 60℃

Size / Dimension

238*98*34mm

Application

IP65, Outdoor or Indoor

Material

Cavity aluminum silver-plated; Connector: Copper

Color

Black

Net Weight

1.0Kg




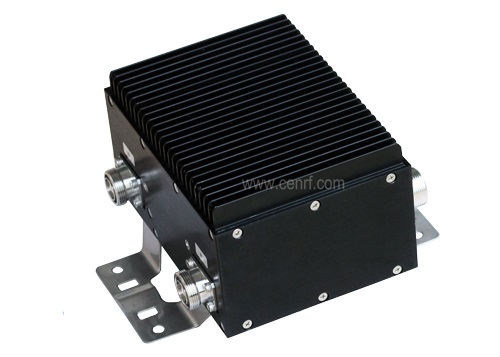

Hybrid Combiner Low PIM 2in 1out 698-2700MHz -155dBc DIN-Female

Specifications

Frequency Range

698 - 2700MHz

Insertion Loss

<3.4dB

Coupling Ripple (dB)

<0.4dB

VSWR

<1.2

PIM (IM3)

<-155dBc @ +43dBm×2

Isolation

25dB

Power Rating

200W / Input port, (Total Power 400W)

Temperature Range

0 to +55℃

Environmental Humidity

0 to 95%

Environmental rating

IP54, Indoor

Connectors

DIN-Female

Mounting

Brackets

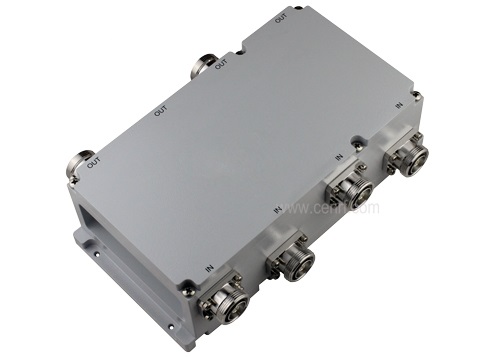

Hybrid Combiner 4in 4out 700-2700MHz -160dBc DIN-Female

Specifications

Frequency Range

698 - 2700MHz

Insertion Loss

<6.9dB (Including Distribution Loss and Fluctuation)

VSWR

<1.2

Isolation

>20dB

Power Handling

500W / input port

PIM (IM3)

<[email protected]×+43dBm

Connector

DIN-Female, 50Ω

Operating Temperature

-20 to 60℃

Size / Dimension

270*138*84.5mm

Application

Indoor / IP65

Material

Cavity aluminum silver-plated; Connector: Copper

Color

Black

Net Weight

5.0Kg

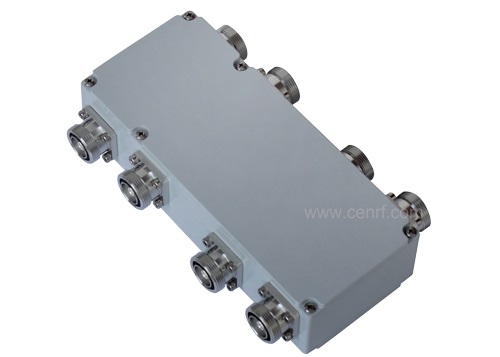

Hybrid Combiner 4in 4out 700-2700MHz -155dBc DIN-Female

Specifications

Frequency Range

698 - 2700MHz

Insertion Loss

≤6.1dB ±0.7dB

VSWR

≤1.20

Isolation

≥30dB

Power Handling

200W / input port; (Total Power 800W)

PIM (IM3)

[email protected]×+43dBm

Connector

DIN-Female, 50Ω

Operating Temperature

-20 to 60℃

Humidity

0% to 99%

Size / Dimension

258*97.4*59

Application

Indoor / Outdoor, IP65

Material

Cavity aluminum silver-plated; Connector: Copper

Net Weight

3.0Kg

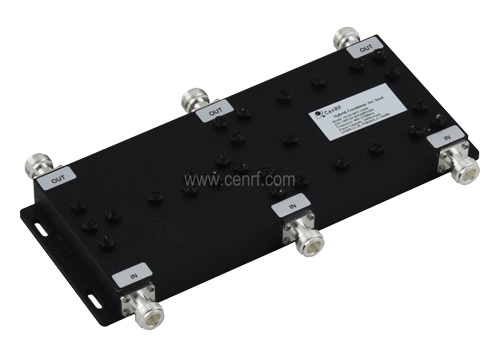

Hybrid Combiner 3in 3out 800-2200MHz -150dBc N-Female

Specifications

Frequency Range

800 - 2200MHz

Insertion Loss

≤5.1dB (Including Distribution Loss and Fluctuation)

Isolation

≥25dB

Return Loss

≥20dB, (VSWR<1.25)

Impedance

50Ω

PIM (IMD3)

≤-150dBc @+43dBm×2

Connectors

N-Female

Power Handling

100W / Input port, (Total power 300W)

Temperature

-25 to +70℃

Environmental Humidity

0 to 95%

Environmental rating

Indoor / IP65

Material

Cavity aluminum silver-plated; Connector: Copper

Size

200×100×25mm

Weight

1.25Kg
