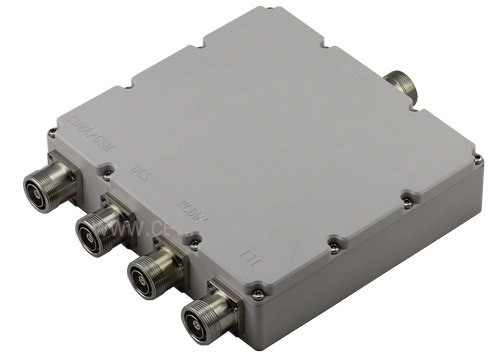

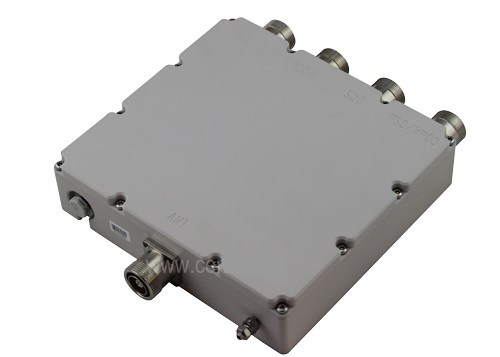

4-way Combiner C_GSM,DCS,3G,LTE -150dBc

Specifications

Electrical

Port

CDMA-GSM

DCS

WCDMA

LTE

Frequency Range

806-960MHz

1710-1880MHz

1920-2170MHz

2500-2690MHz

Insertion Loss

≤0.2dB

≤0.5dB

≤0.5dB

≤0.5dB

Ripple

≤0.15dB

≤0.4dB

≤0.4dB

≤0.4dB

Max input power

150W

150W

150W

150W

Isolation(dB)

[email protected]

[email protected]

[email protected]

[email protected]

[email protected]

[email protected]

[email protected]

[email protected]

[email protected]

[email protected]

[email protected]

[email protected]

DC & AISG pass

no

no

yes

yes

Return Loss

≥18dB

≥18dB

≥18dB

≥18dB

PIM (IM3)

≤-150dBc @43dBm*2

Impedance

50Ω

EMC

ETS 300 342-3

Lightning Protection

Comply with IEC 61000-4-5; 8kA, 8/20μs

MTBF

> 1,000,000 hours

Mechanical

Weight

4.8Kg

Connector

DIN-female

Colour

Grey or Custom

Operating Humidity

5-95%

Operating Temperature

-25 to 60ºC

Application

Outdo, or

Mounting

Pole or Wall Mount

Waterproof grade

IP67





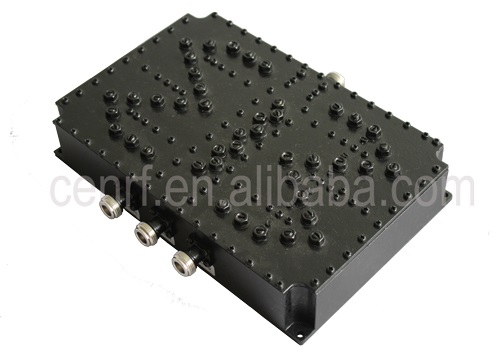

3-Way Combiner GSM & DCS & 3G -150dBc

Specifications

Channels

CDMA-GSM

DCS

3G / UMTS / WCDMA

Frequency Range

800-960MHz

1710-1880MHz

1920-2170MHz

Bandwidth

160MHz

170MHz

250MHz

Insertion Loss

<0.3dB

<0.5dB

<0.5dB

Isolation

>[email protected]

>[email protected]

>[email protected]

>[email protected]

>[email protected]

>[email protected]

VSWR

<1.3

Power Handling

100W / Input port (Total power 300W)

PIM (IM3)

<-150dBc @2×43dBm

Impedance

50Ω

Temperature Range

0 to +65℃

Environment Humidity

5% to 97%

Installation Environment

Indoor, IP54

Connectors

N-Female




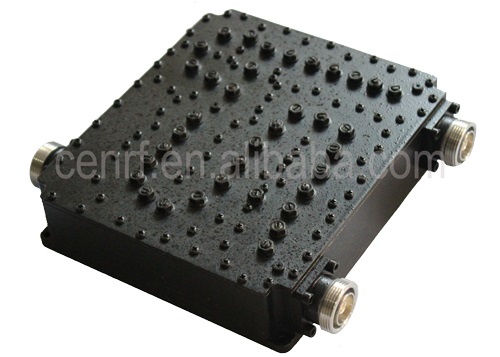

2-way Combiner DCS & 3G -155dBc

Specifications

Channels

DCS

3G / UMTS / WCDMA

Frequency Range

1710-1880MHz

1920-2170MHz

Bandwidth

170MHz

250MHz

Isolation

>[email protected]

>[email protected]

Insertion Loss

<0.4dB

VSWR

<1.3

Power Handling

200W / Input port

PIM (IM3)

<-155dBc @2×43dBm

Impedance

50Ω

Temperature Range

-20 to +65℃

Environment Humidity

5% to 97%

Installation Environment

Indoor, IP54

Connectors

DIN-Female




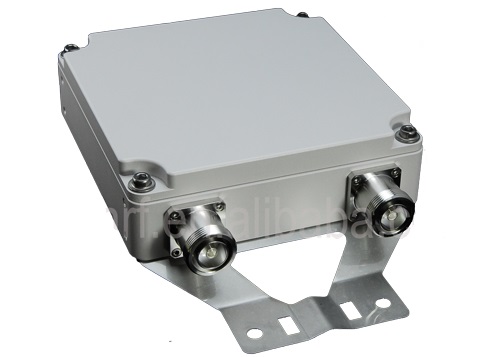

2-way Combiner DCS & 3G, IP67 -155dBc

Specifications

Channels

DCS

3G / UMTS / WCDMA

Frequency Range

1710-1880MHz

1920-2170MHz

Bandwidth

170MHz

250MHz

Isolation

>[email protected]

>[email protected]

Insertion Loss

<0.4dB

In-band Ripple

≤0.2dB

Isolation

>50dB

VSWR

<1.3

Power Handling

250W / Input port (Total power 500W)

PIM (IM3)

<-155dBc @2×43dBm

Impedance

50Ω

Temperature Range

-20 to +65℃

Environment Humidity

5% to 97%

Installation Environment

Outdoor, IP67

Connectors

DIN-Female




3-way Combiner C_GSM&DCS&3G DIN-Female IP67 -155dBc

Specifications

Channels

CDMA-GSM

DCS

3G / UMTS / WCDMA

Frequency Range

800-960MHz

1710-1880MHz

1920-2170MHz

Bandwidth

160MHz

170MHz

250MHz

In-band Ripple

≤0.15dB

≤0.4dB

≤0.4dB

Insertion Loss

<0.2dB

<0.5dB

<0.5dB

Isolation

>[email protected]

>[email protected]

>[email protected]

>[email protected]

>[email protected]

>[email protected]

VSWR

<1.3

Power Handling

250W / Input port (Total Power 700W)

PIM (IM3)

<-155dBc @2×43dBm

Impedance

50Ω

Temperature Range

-25 to +65℃

Environment Humidity

5% to 97%

Installation Environment

Outdoor, IP67

Connectors

DIN-Female
